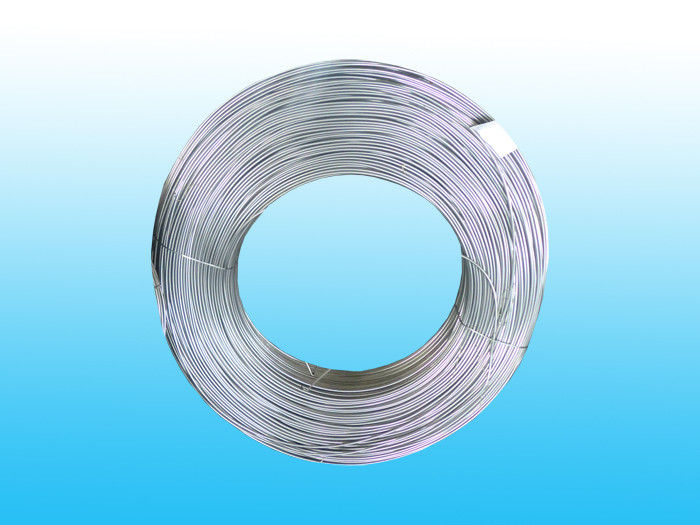

Steel Zn Coated Bundy Pipe , Galvanized Evaporator Tube 4 * 0.65 mm
Galvanized Steel Tube
outer diameter:8mm
wall thickness: 0.65mm
low carbon steel strip
1.materials: low carbon steel strip
2.main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc
3.outer diameter:4.0mm
4.wall thickness: 0.65mm
5. standard: GB/T 24187-2009
6.certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Enviroment Management System
7.surface treatment: coating zn and hot galvanized
8. features: high intensity, good plasticity and small resistance
9.tensile strength: more than 290 Mpa
10.yield strength:more than 180 Mpa
11.elongation:more than 25%
12. place of origin: changzhou city, jiangsu province, China
13. salt fog-resisting test time:also more than 72 hours
14.port of loading:shanghai,china
15. package:plastic cloth with coils, wooden boxes, iron pallets etc
16. delivery:as contract
17.payment terms:T/T,L/C etc
18. supply ability:30000 ton per year
19. brand:WUSHUN
Applications:
Zn coated steel tube is mainly used in refrigerator, freezer ,condenser, evaporator etc,it is made by material low carbon steel strip and based on the national standard.
Specifications:
| specification | dimensional tolerance | Mechanical properties |
| Diameter tolerance | Wall thickness tolerance | tensile strength | yield strength | elongation |
| ZN coated bundy pipe 4*0.65mm | ±0.08 | ±0.08 | ≥290Mpa | ≥180Mpa | ≥25% |
Galvanized pipe corrosion performance index
| Product name | Zinc coating thickness | Salt spray test time |
| White galvanized tube | ≥2μm | ≥24 hours |
| ≥4μm | ≥72 hours |
| ≥6μm | ≥84 hours |
| Green Galvanized tube | ≥4μm | ≥96hours |
| ≥6μm | ≥108hours |
| ≥7μm | ≥120 hours |
Competitive Advantage:
We can produce zn coated steel tube according to customer's requirement,salt spray time from 24h to 120h,corrosion resistance is good .size is complete ,quality is best with competive price ,according to the national standard.
